Luna Series

100W – 150W

Luna Series All-in-One Solar Street Light

The LUNA Series features an optimized wide-angle optical system that delivers broader beam coverage while maintaining dependable lighting performance. It is developed for applications where wider light distribution improves overall lighting effectiveness.

Wattage
100W – 150W
Lumen
160-180LM/W
Lighting
12-15 hours per day
Backup
2–3 rainy days​

Technical specifications

Every unit ships to the same verified spec sheet — so what you quote is what you receive.

MODEL NO.DER-LN01-100DER-LN01-120DER-LN01-150
Solar Panel95W(Mono)120W(Mono)135W(Mono)
Lithium BatteryLiFePO4 90AHLiFePO4 120AHLiFePO4 180AH
Luminous flux160-180LM/W
Working ModeTime Schedule/PIR Sensor (Optional)
Charging Time4-5 Hours
WorkingLighting Time≥12 hours Per Night
Raining days backup3 Days
Color temperature3000-6000K
Beam angle75°X145°
Housing MaterialAluminum Alloy
Working temperatureCharge temperature0-55°C
Discharge temperature−10°C-60°C
Ingress ProtectionIP66
Product Dimension(mm)1280*450*68mm1550*450*68mm1740*450*68mm
Recommended Pole Diameter(mm)Ø60–76 mm by Default or Customized
Recommend Installation height(m)6-7m7-8m8-10m
Recommend Installation spacing(m)15~20m20~25m25~30m

Wide Beam. Better Coverage.

Its optimized wide-angle optical design distributes light across a larger area, providing broader coverage for residential streets and outdoor environments where wider beam distribution is preferred.

Wide-angle optical design

Wide-beam optical performance

High-efficiency monocrystalline solar panel

High charging efficiency MPPT controller

Grade A 100% brand-new LiFePO₄ battery cells

Intelligent time-based lighting control

DER-LN01-100
100W SOLAR STREET LIGHT
DER-LN01-120
120W SOLAR STREET LIGHT
DER-LN01-150
150W SOLAR STREET LIGHT

Where to Use Luna Series

Ideal for residential streets, community roads, pathways, parks, bicycle lanes, and other outdoor environments benefiting from wider beam distribution.

National Highways & Expressways

High-lumen output for high-speed arterial infrastructure.

Industrial Zones & Ports

IP67-rated resilience for industrial environments.

Airport Perimeter Roads

Precision lighting meeting strict airside specifications.

Urban Arterial Roads

City-grade illumination for main urban thoroughfares.

Sports & Stadium Facilities

Uniform, glare-controlled light for outdoor sports venues.

Certified Quality

Every DER product ships with independently verified certifications — giving distributors and project engineers the documentation confidence to win bids.

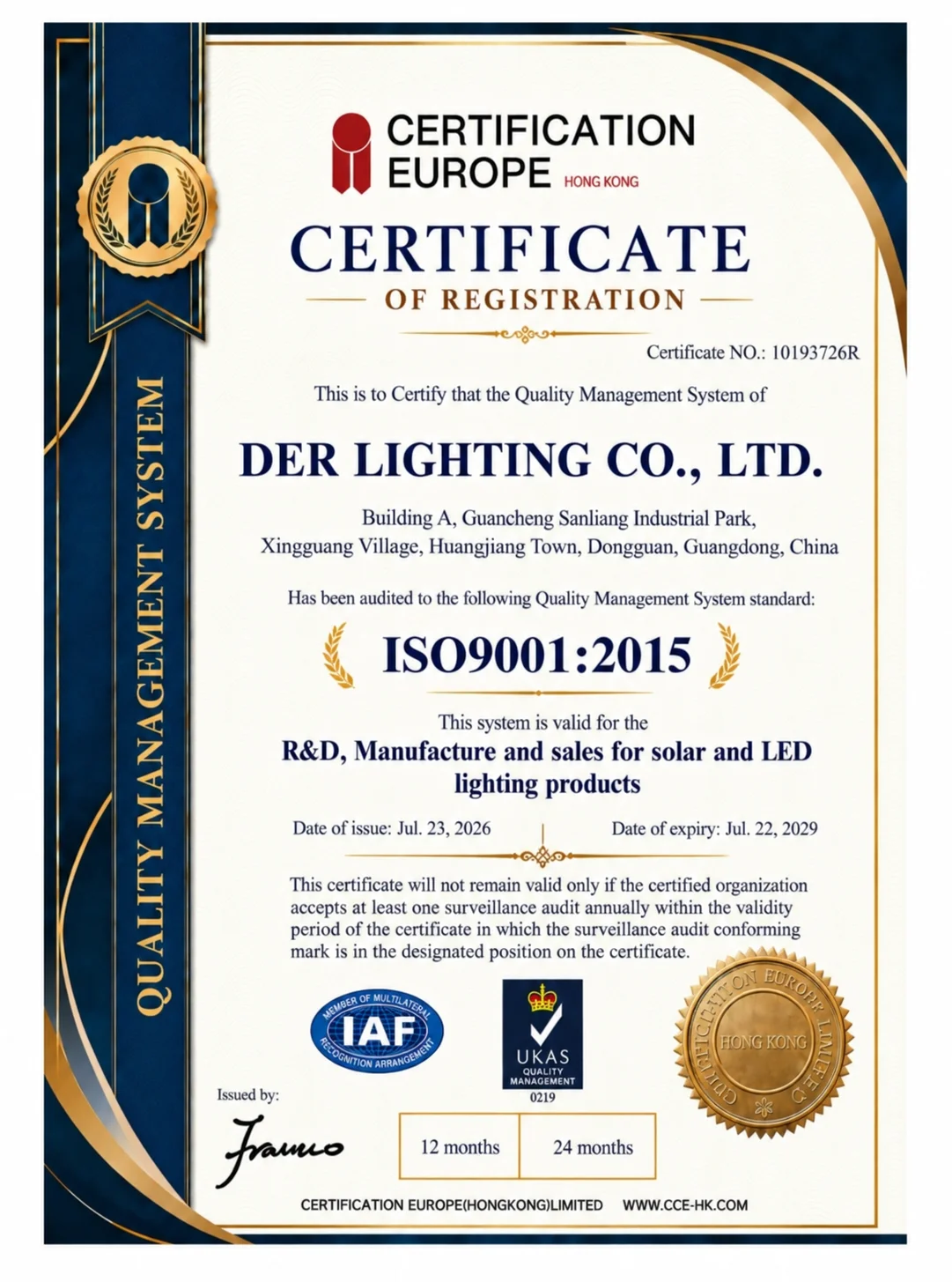

DER ISO
ISO9001

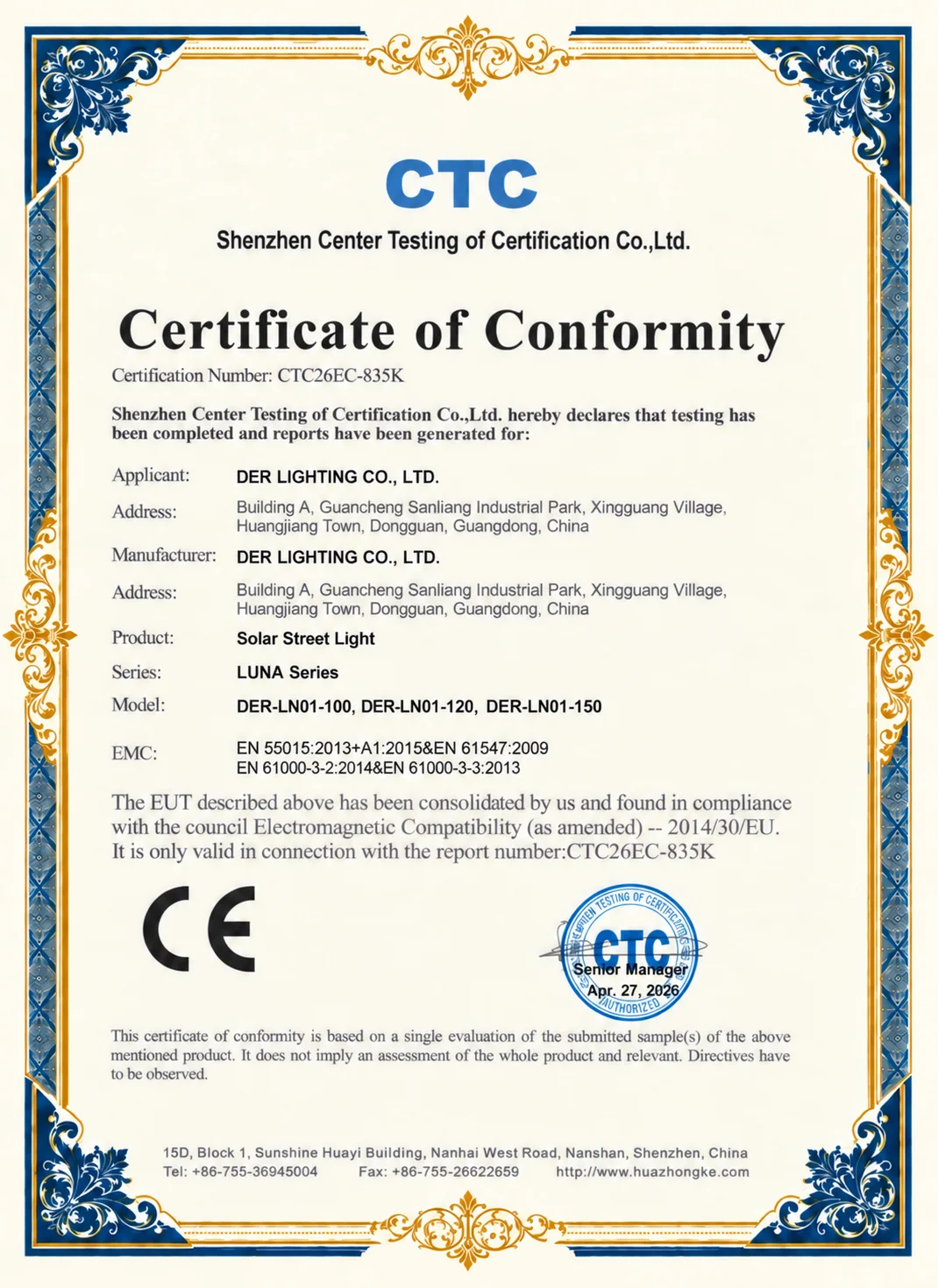

CE-EMC

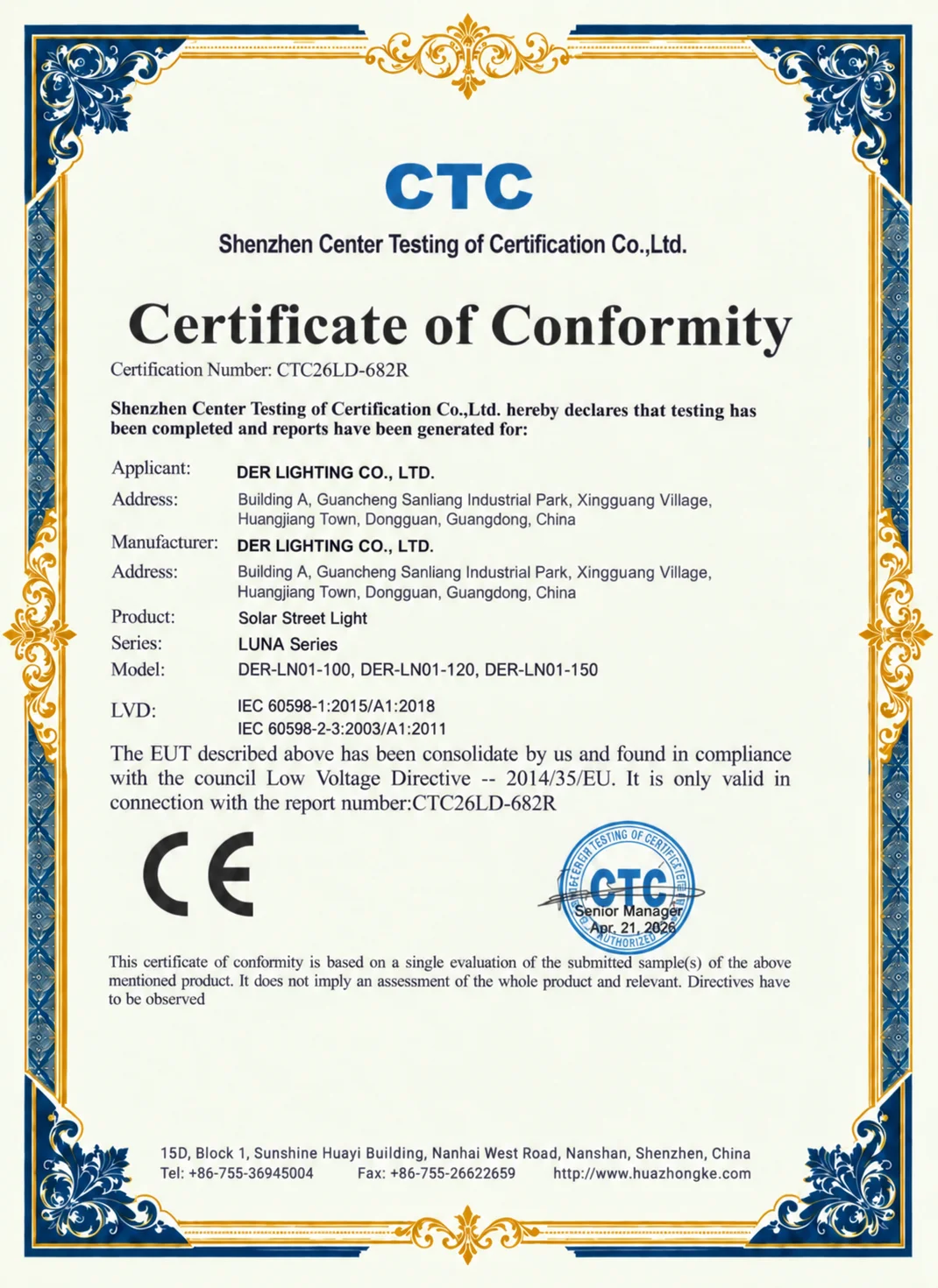

LUNA-LVD
CE-LVD

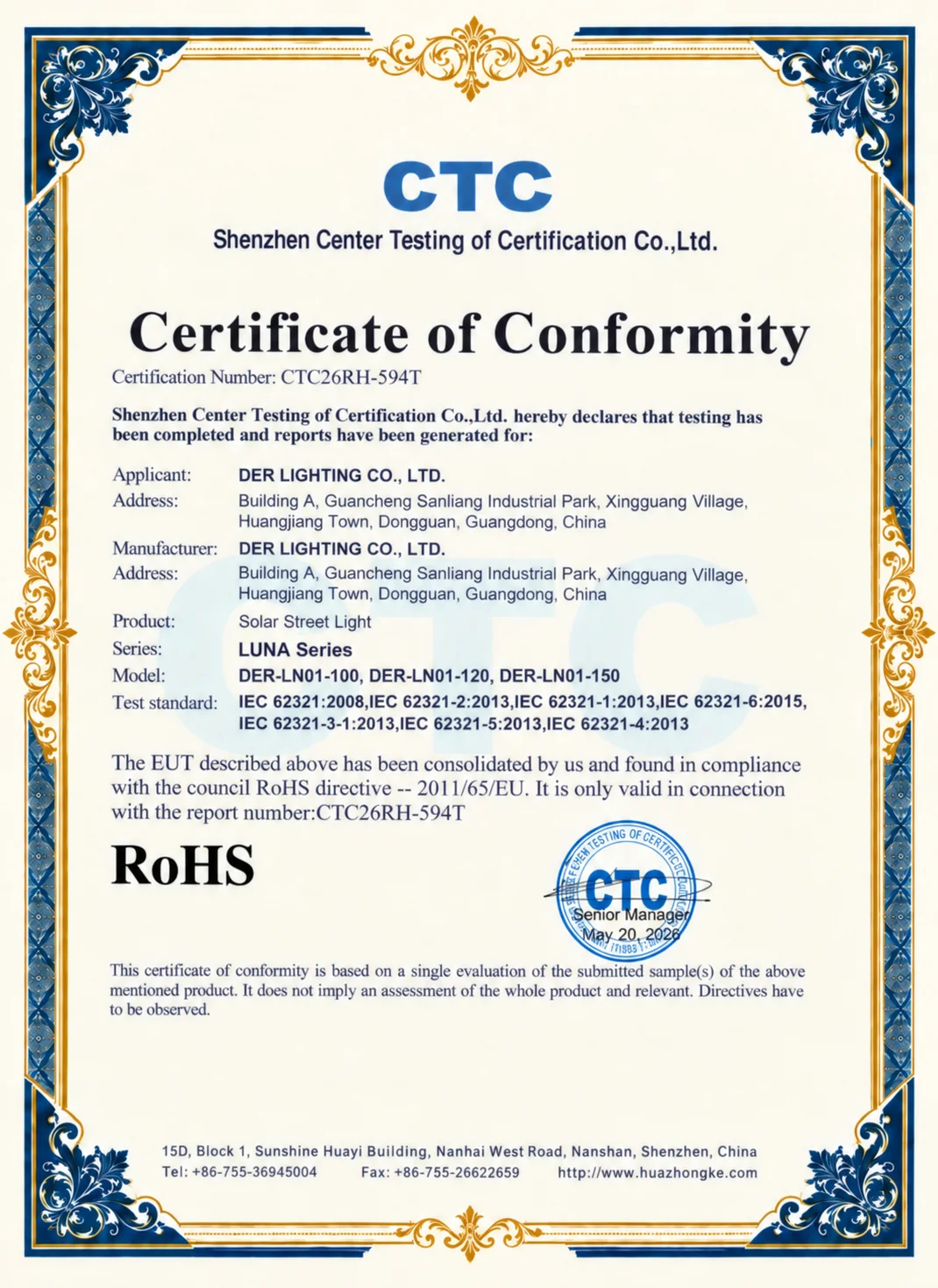

LUNA-ROHS
ROHS

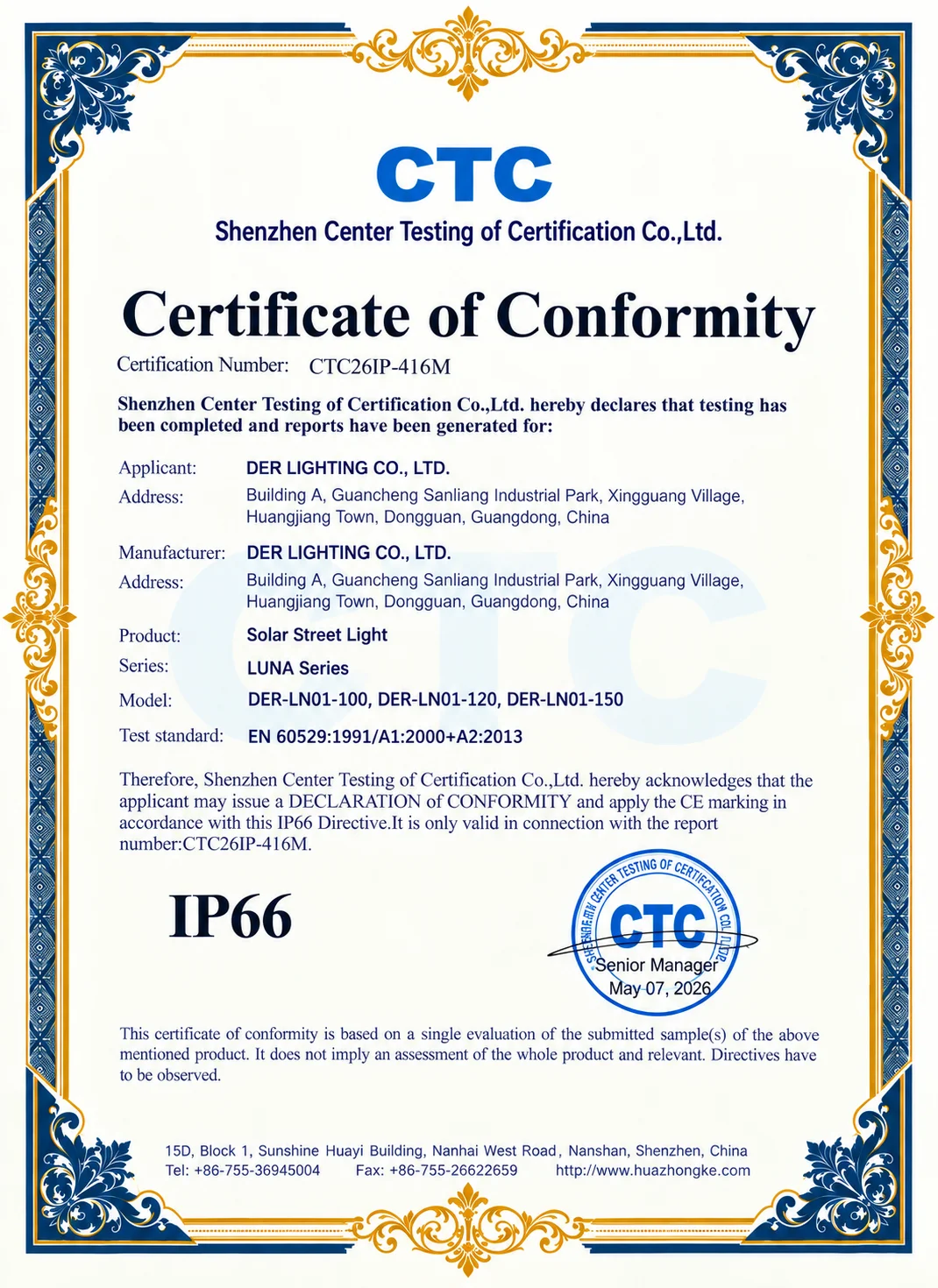

IP66

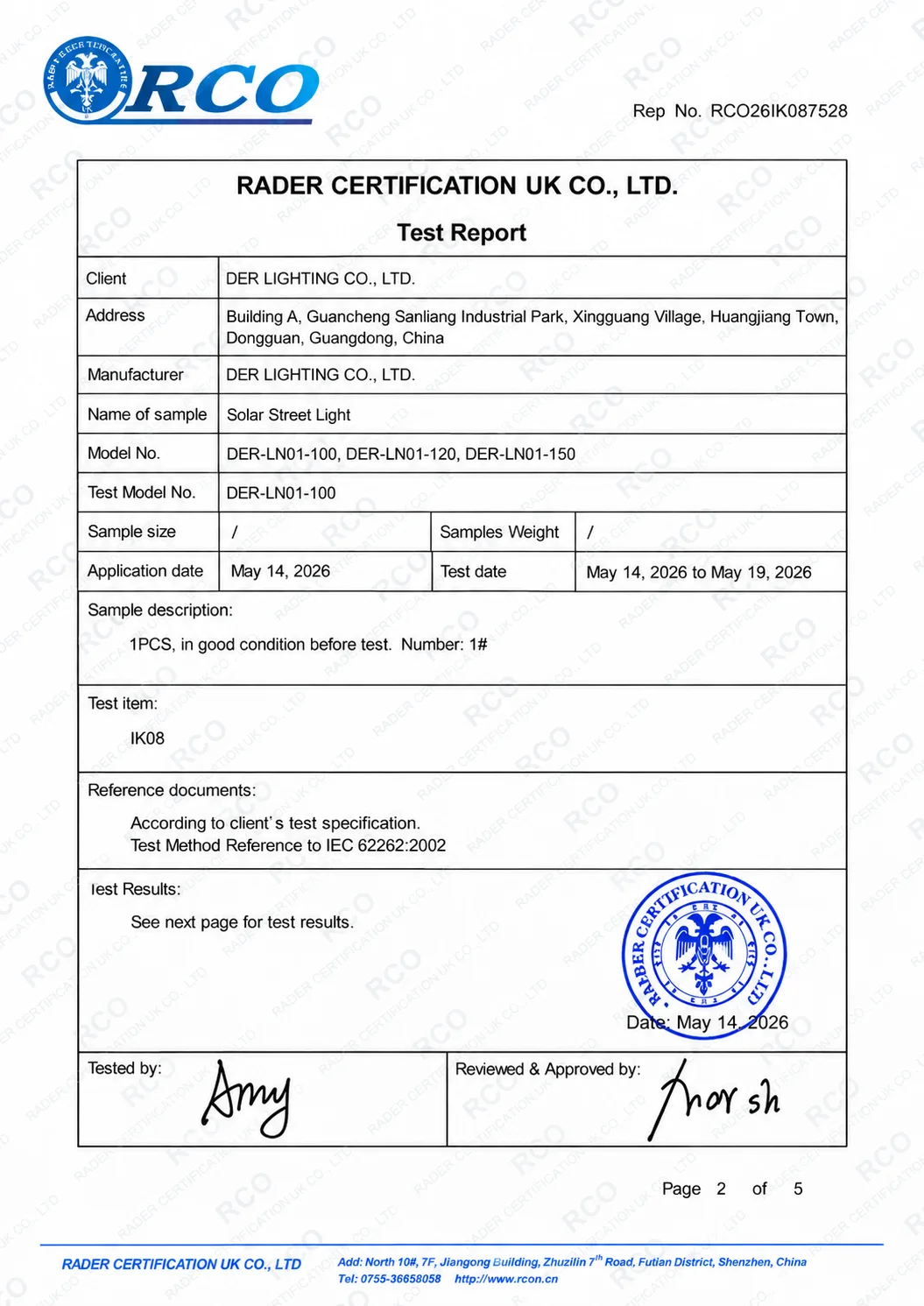

LUNA-IK08
IK08

What clients say about the Luna Series

Explore Another Series

Looking for a different design? Explore our other All-in-One Solar Street Light series to find the style that best fits your market.
