60W – 100W
Vega Series All-in-One Solar Street Light
The VEGA Series features an innovative lightweight open-frame structure that reduces fixture weight without compromising charging performance. It is purpose-built for retrofit projects where easier handling and faster installation improve overall project efficiency.
60W – 100W
160-180LM/W
12-15 hours per day
2–3 rainy days
- Specifications
Technical specifications
Every unit ships to the same verified spec sheet — so what you quote is what you receive.
| MODEL NO. | DER-VG01-60 | DER-VG01-80 | DER-VG01-100 | |||
|---|---|---|---|---|---|---|
| Solar Panel | 70W(Mono) | 85W(Mono) | 100W(Mono) | |||
| Lithium Battery | LiFePO4 90AH | LiFePO4 105AH | LiFePO4 120AH | |||
| Luminous flux | 160-180LM/W | |||||
| Working Mode | Time Schedule/PIR Sensor (Optional) | |||||
| Charging Time | 4-5 Hours | |||||
| Working | Lighting Time | ≥12 hours Per Night | ||||
| Raining days backup | 3 Days | |||||
| Color temperature | 3000-6000K | |||||
| Beam angle | 75°X145° | |||||
| Housing Material | Aluminum Alloy | |||||
| Working temperature | Charge temperature | 0-55°C | ||||
| Discharge temperature | −10°C-60°C | |||||
| Ingress Protection | IP66 | |||||
| Product Dimension(mm) | 1122*387*86mm | 1402*387*86mm | 1532*387*86mm | |||
| Recommended Pole Diameter(mm) | Ø60–76 mm by Default or Customized | |||||
| Recommend Installation height(m) | 5-6m | 6-7m | 7-8m | |||
| Recommend Installation spacing(m) | 10~15m | 15~20m | 20~25m | |||
- Key Features
Lighter Design. Easier Retrofit.
Its lightweight open-frame structure simplifies transportation and installation, making the VEGA Series an efficient solution for street light replacement and municipal retrofit projects.
Lightweight open-frame structure
Retrofit-optimized fixture design
High-efficiency monocrystalline solar panel
High charging efficiency MPPT controller
Grade A 100% brand-new LiFePO₄ battery cells
Intelligent time-based lighting control
- APPLICATIONS
Where to Use Vega Series
Ideal for street light replacement, municipal retrofit projects, road upgrades, and other applications where lightweight fixtures simplify installation and accelerate project delivery.
National Highways & Expressways
Industrial Zones & Ports
IP67-rated resilience for demanding industrial environments.
Airport Perimeter Roads
Precision lighting meeting strict airside specifications.
Residential Communities
Safe, welcoming illumination for housing estates and suburbs.
Sports & Stadium Facilities
Uniform, glare-controlled light for outdoor sports venues.
- Standards & Compliance

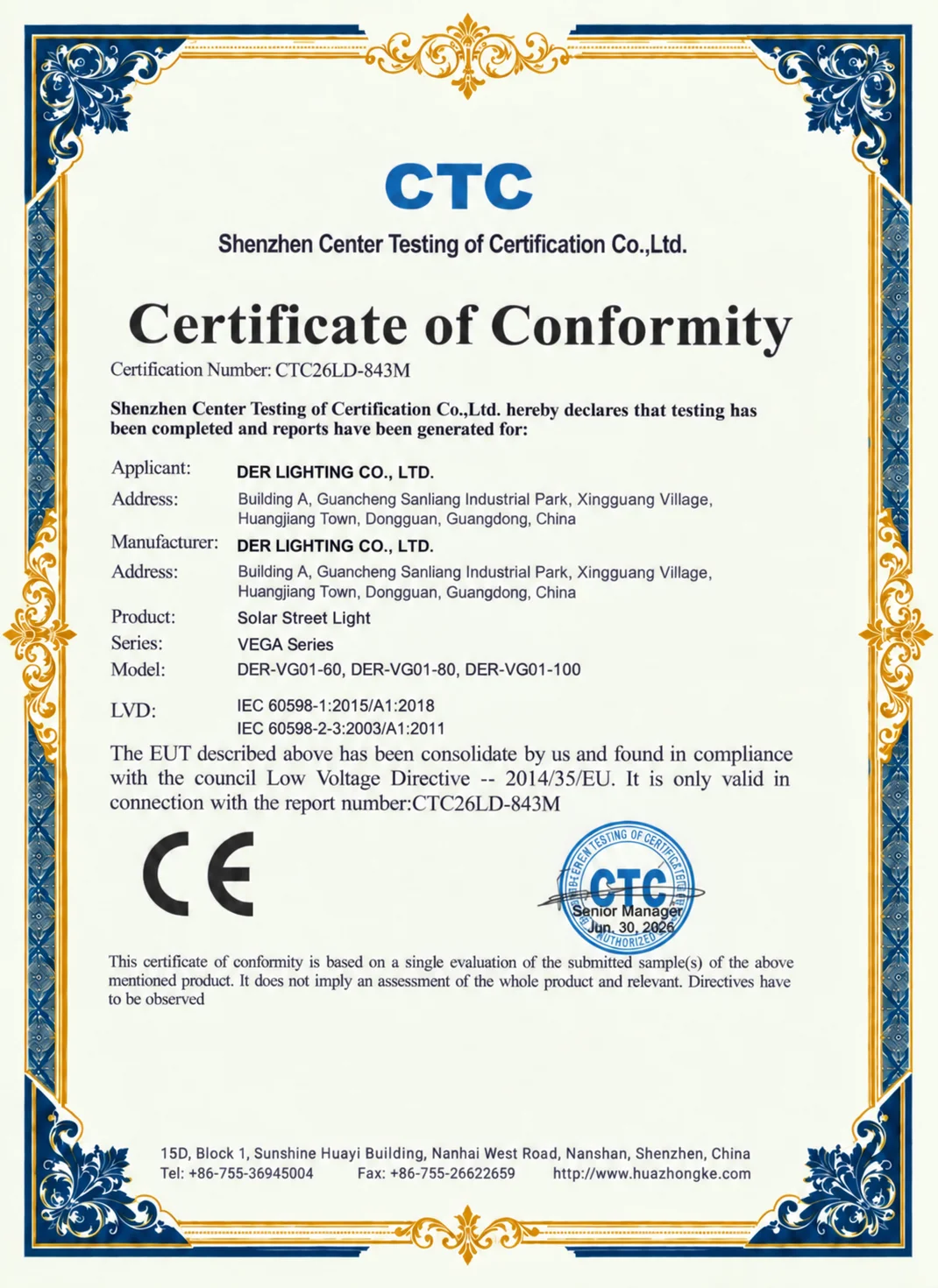

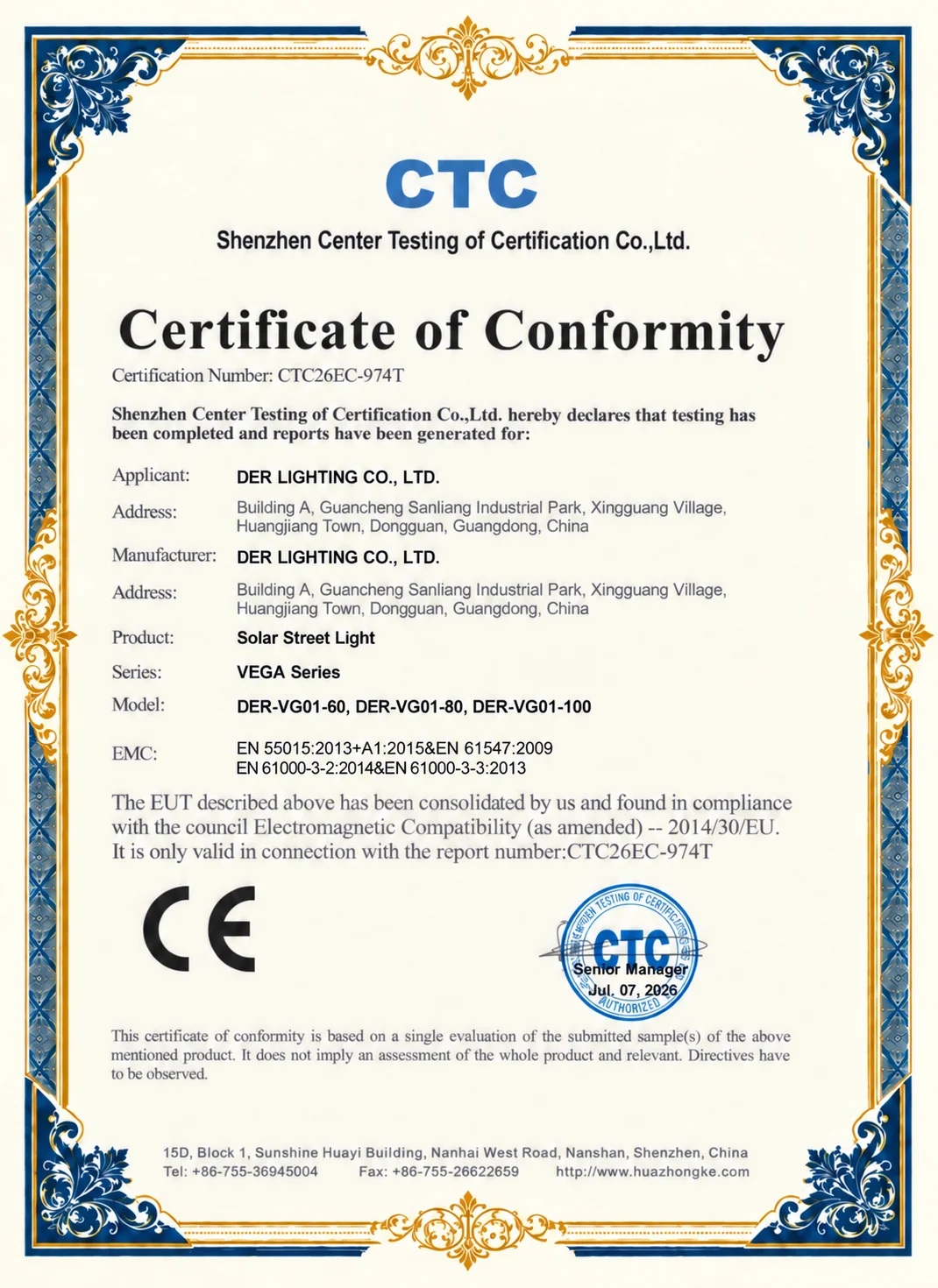

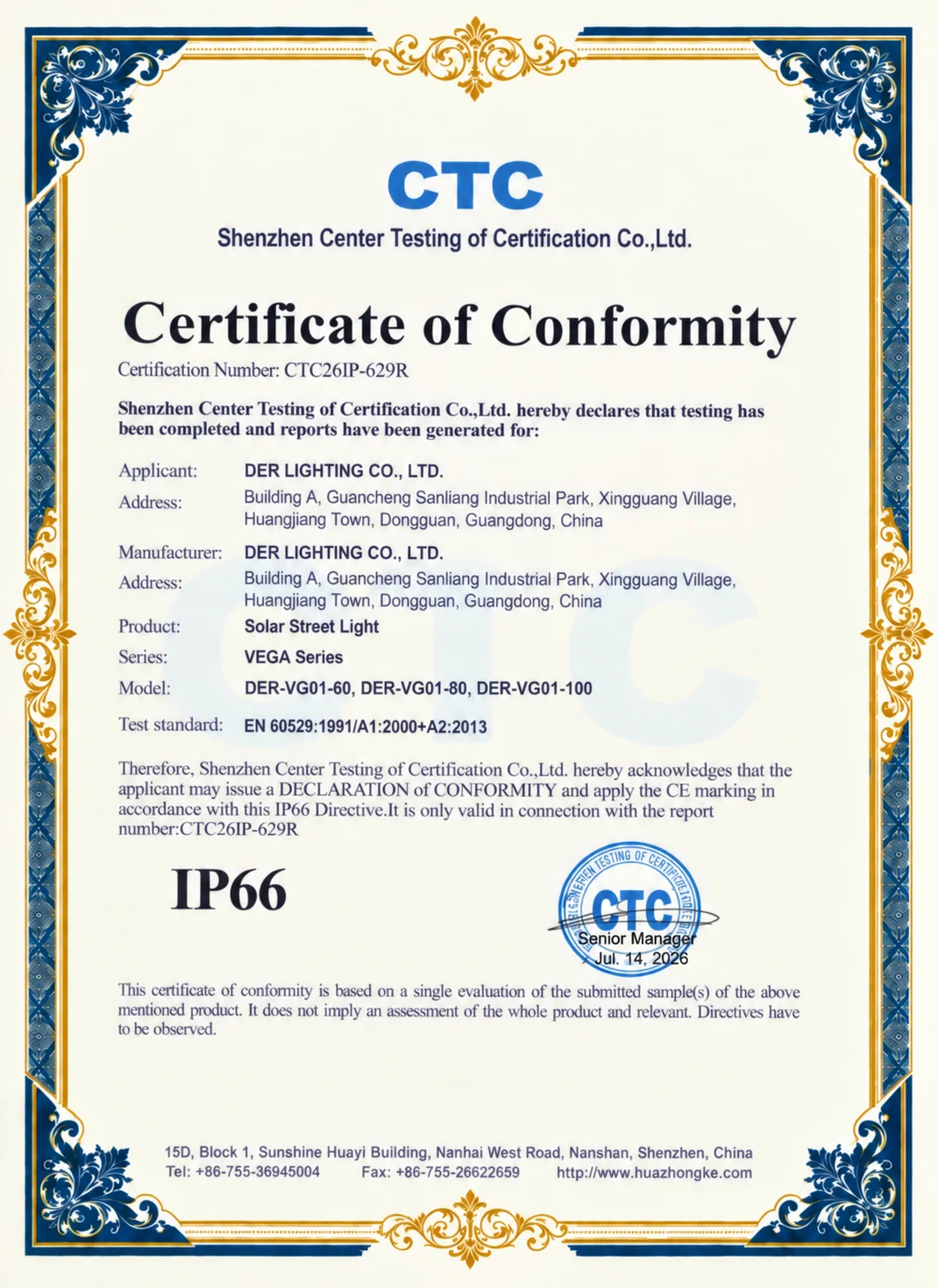

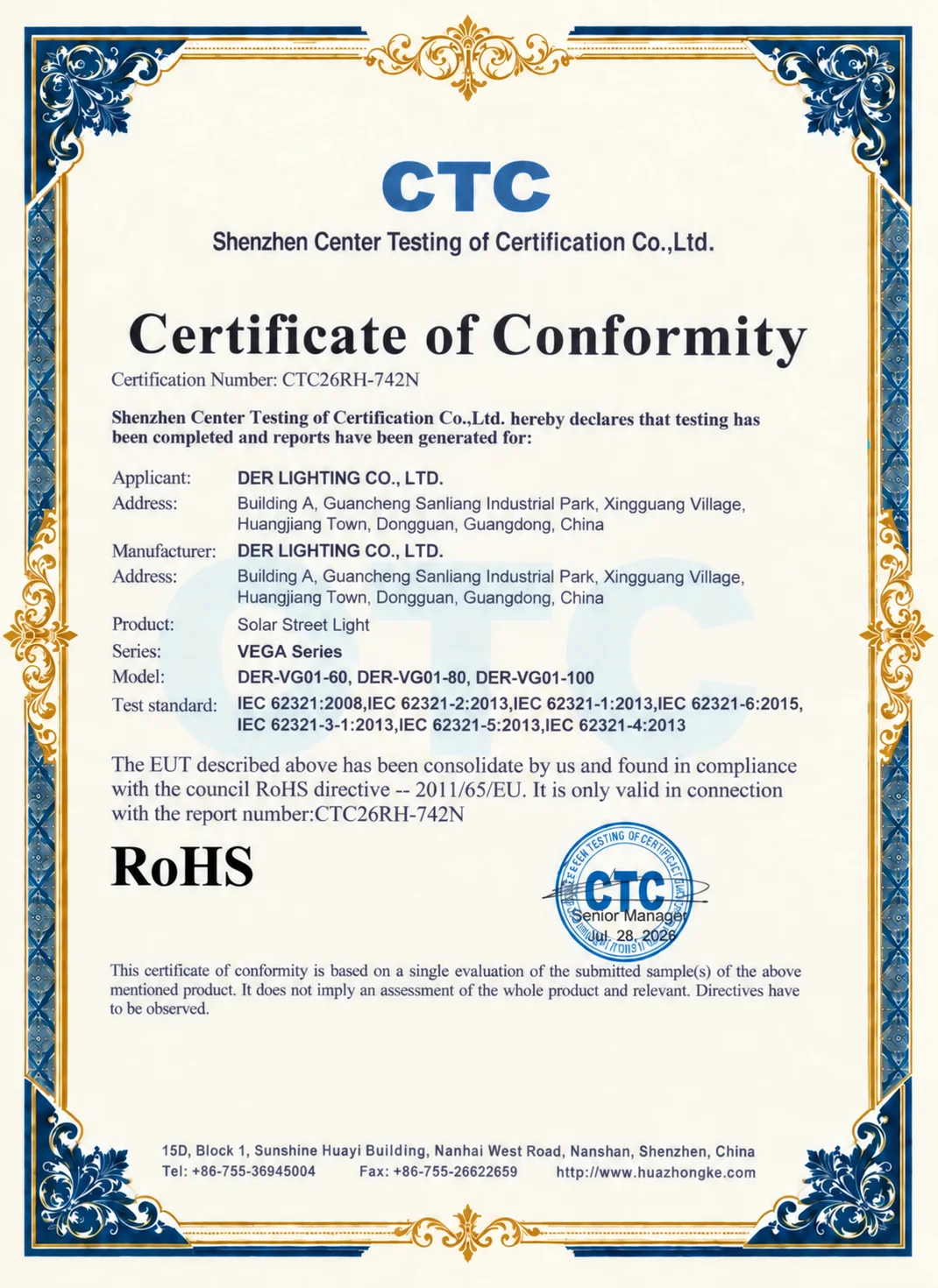

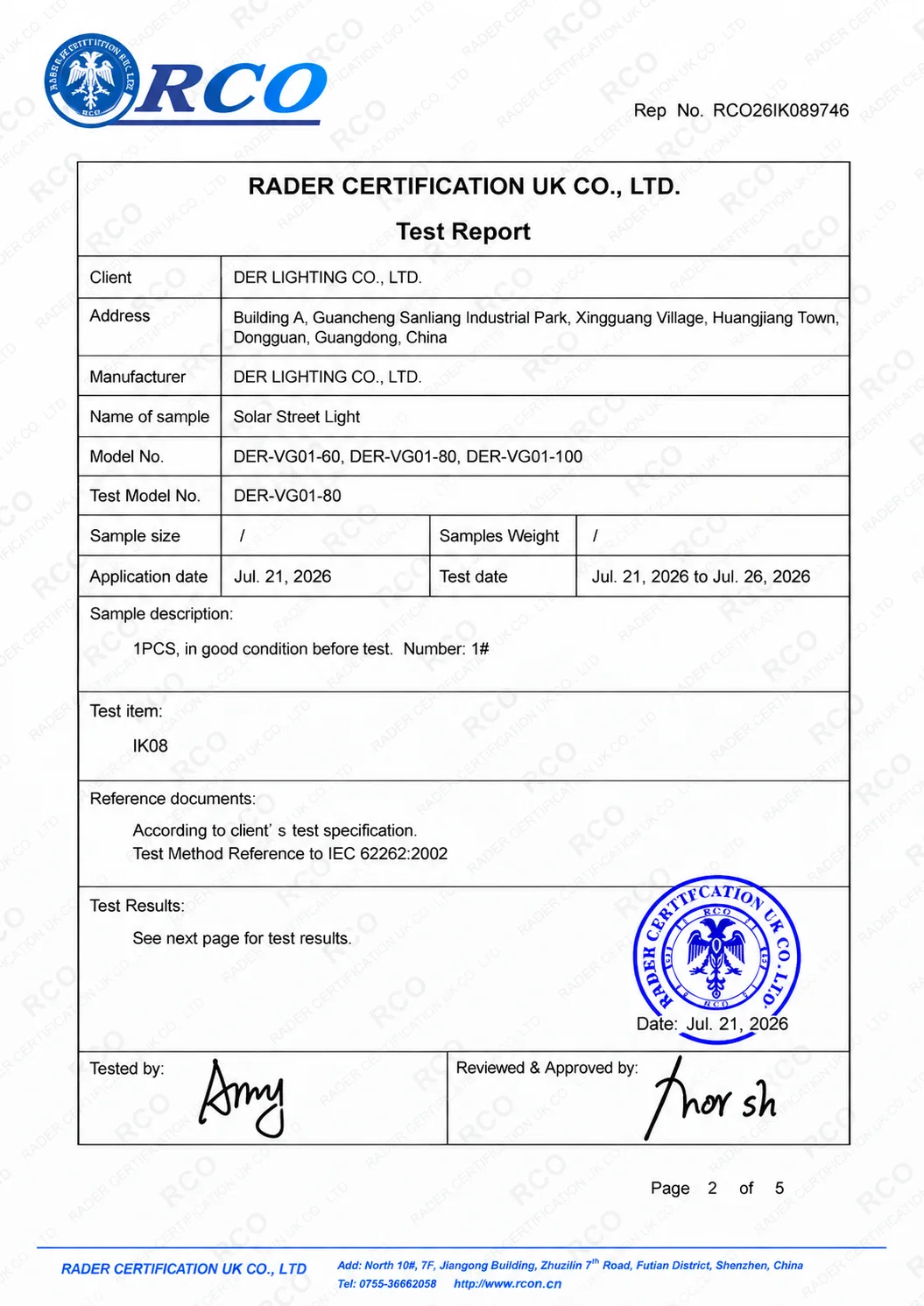

Certified Quality
Every DER product ships with independently verified certifications — giving distributors and project engineers the documentation confidence to win bids.






- Client voices
What clients say about the Vega Series
José Martínez
Andrei Popescu
Ibrahim Musa
Carlos Hernández
Somchai Rattanakul
Brian Mwila
Explore Another Series
Looking for a different design? Explore our other All-in-One Solar Street Light series to find the style that best fits your market.
